![Precision Piston Rod Steel Hollow Shaft in Shock Absorber](/uploads/s/7b3289a880b54d45a9d9f9f344d93de5.webp)

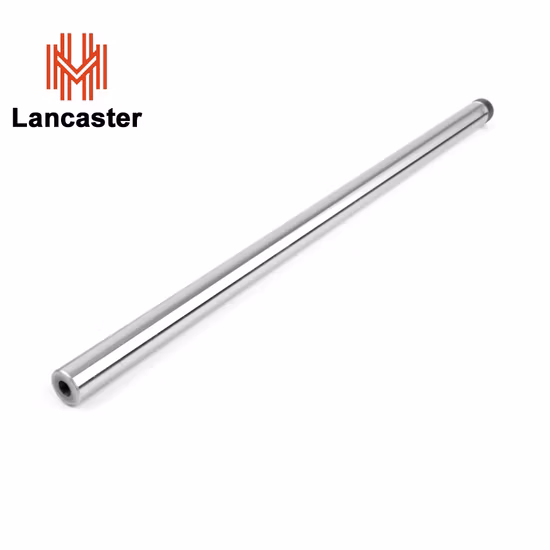

Precision Piston Rod Steel Hollow Shaft in Shock Absorber
Specification: Precision Piston Rod Steel Hollow Shaft Manufacturing process description: 1. Hydraulic shear cutting 2. ;
Basic Info.
Application | Oil Pipe, Hydraulic System |
Electroplating Hardness | Hv800-1050 |
Surface | Hard-Chromed |
Tolerance | H8 H9 |
Product Name | Precision Piston Rod Steel Hollow Shaft |
Transport Package | Oil Apply+ Carton+Pallet |
Specification | Customization |
Origin | Ningbo |
Product Description
Specification:
Precision Piston Rod Steel Hollow Shaft | ||
Standard | DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713... | |
Material | All kind of brass,copper,stainless steel etc... | |
Heat treatment | BKS | |
Specification | Outer diameter(mm) | Inner diameter(mm) |
50-300mm | 40-250 | |
I.D Tolerance | H8-H9 | |
Length | 200-600m (Customers usually choose the 300~500m) | |
Straightness | 1/1000 | |
ID roughness | RA 0.4micron(max) | |
Technology | Honed & SRB(SKIVED AND ROLLER BURNISHED ) | |
Scope | Honed tube for hydraulic cylinder, swivel crane, injection machine and construction machine application |
Precision Piston Rod Steel Hollow Shaft
Manufacturing process description:
1. Hydraulic shear cutting
2. CNC machining + additional broaching and milling operations
3. Induction hardening at a range of different frequencies and powers
4. Rotary straightening
5. Proportionally servo controlled CNC grinding
6. Leading edge technologies for hard chromium,
7. Dehydrogenation and tempering
8. Wet polish and superfinish polish with 100% surface condition control
9. Export Packaging
